KSSM autogenerated report

Generated on: 2025-03-30T18:42:04.318285+00:00

Parameters

input file
simulation time: 60 s
time resolution: 1000 µs

Nodes

Node ID	Long Name	Position	Tx Power	Noise Level	Frequency	Lora Mode	Hop Start	Role	Position Interval	Nodeinfo Interval	Text Message Min Interval	Text Message Max Interval	Debug
0xdeadbeef	Node 1	[1000, 1000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0xcafebabe	Node 2	[1000, 4000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0xfafac0c0	Node 3	[1000, 7000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0x0000aaaa	Node 4	[4000, 1000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0xbaab1234	Node 5	[4000, 4000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0x12345678	Node 6	[4000, 7000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0xabcdef00	Node 7	[7000, 1000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0x3ab02511	Node 8	[7000, 4000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False
0xefeebaac	Node 9	[7000, 7000, 10]	22	-100	869525000	MediumFast	3	CLIENT	0	0	0	15	False

Results

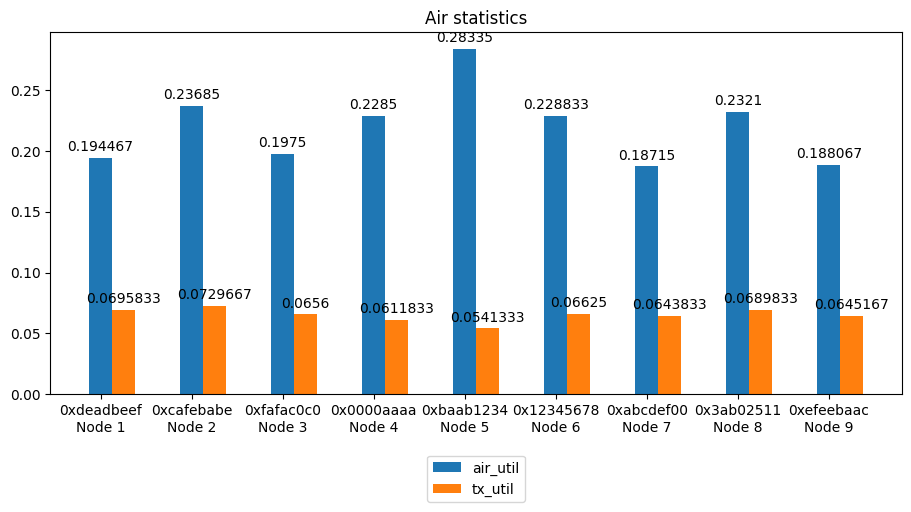

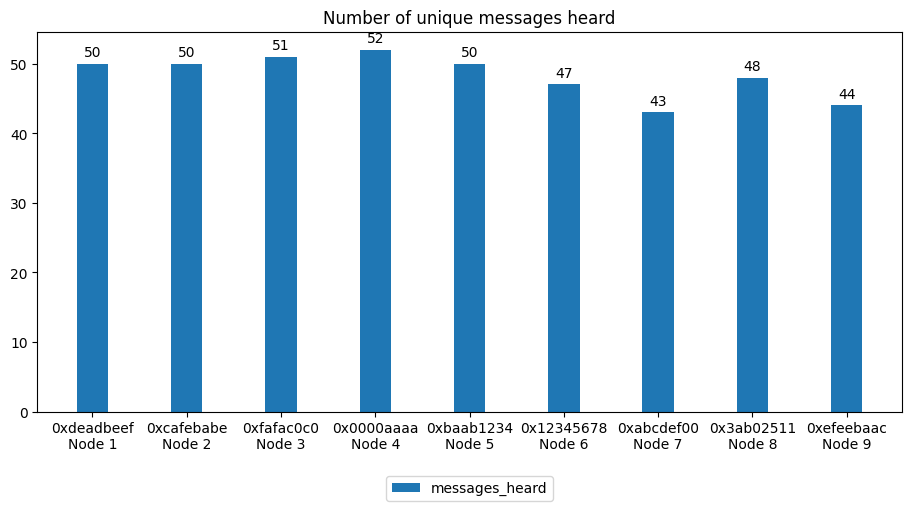

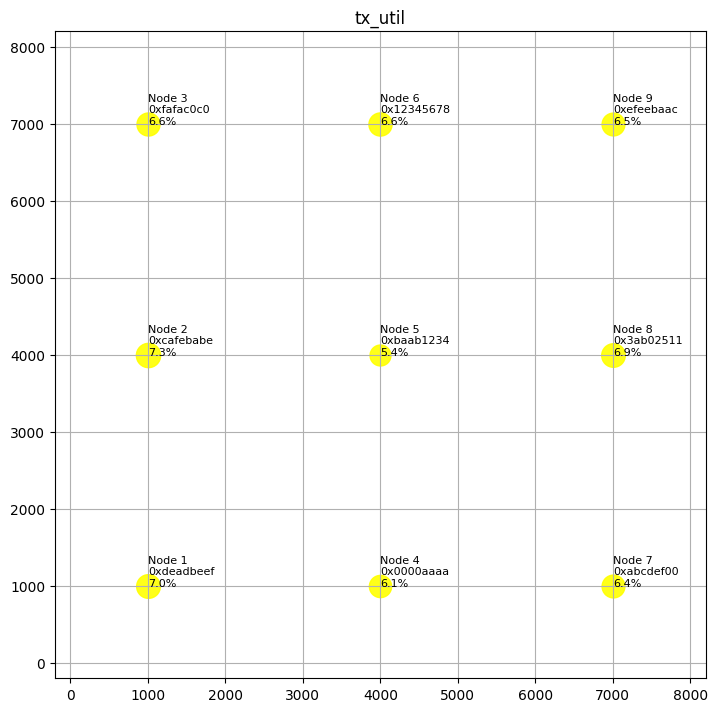

node_id	time	long_name	role	position	tx_power	noise_level	frequency	lora_mode	state	backoff_time	message_queue_len	messages_heard	known_nodes	rx_success	rx_fail	rx_dups	rx_unicast	tx_done	forwarded	tx_cancelled	collisions_caused	tx_origin	messages_confirmed	tx_sime_sum	rx_time_sum	backoff_time_sum	tx_util	air_util
0000aaaa	59948000	Node 4	Role.CLIENT	[4000, 1000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	RX_BUSY	0.0	0	52	9	89	43	34	0	43	43	3	22	6	28	3671000	10039000	12998000	0.0612	0.2287
12345678	59886000	Node 6	Role.CLIENT	[4000, 7000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	IDLE	0.0	0	47	9	86	43	24	0	47	44	4	25	8	52	3975000	9755000	13194000	0.0664	0.2293
3ab02511	59947000	Node 8	Role.CLIENT	[7000, 4000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	RX_BUSY	0.0	0	48	9	82	45	29	0	49	46	2	32	8	42	4139000	9787000	14170000	0.0690	0.2323
abcdef00	59946000	Node 7	Role.CLIENT	[7000, 1000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	TX_BUSY	0.0	1	43	9	70	22	17	0	45	36	2	13	12	75	3863000	7366000	11515000	0.0644	0.1873
baab1234	59929000	Node 5	Role.CLIENT	[4000, 4000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	WAITING_TO_TX	228960.0	0	50	9	96	95	42	0	38	42	8	34	6	33	3248000	13753000	11791000	0.0542	0.2837
cafebabe	59887000	Node 2	Role.CLIENT	[1000, 4000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	WAITING_TO_TX	381600.0	0	50	9	83	49	25	0	52	47	3	16	9	55	4378000	9833000	14129000	0.0731	0.2373
deadbeef	59930000	Node 1	Role.CLIENT	[1000, 1000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	WAITING_TO_TX	330720.0	0	50	9	74	21	20	0	49	44	1	23	7	35	4175000	7493000	14095000	0.0697	0.1947
efeebaac	59456000	Node 9	Role.CLIENT	[7000, 7000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	IDLE	0.0	0	44	9	66	30	18	0	45	38	1	14	10	56	3871000	7413000	12179000	0.0651	0.1898
fafac0c0	59886000	Node 3	Role.CLIENT	[1000, 7000, 10]	22	-100	869525000	LoRaMode.MEDIUM_FAST	IDLE	0.0	0	51	9	83	16	22	0	46	41	4	10	9	58	3936000	7914000	11801000	0.0657	0.1979
